Name: Hot Rod Chassis Crossmember Front Plate - 43 OD Tube, Triangle, Drop, 8mm thick
Brand: Kustom Bitz
SKU: KB-MSP-80-XDRP-43T-3x12
Price: 26.4000 AUD
Availability: InStock

Shipping is extra

Shipping is calculated by size and weight in the check out section when you enter your address. Shipping starts from approx $13.50 and is in addition to the product prices shown.

We ship once a week or depending on the workload in our custom car fabrication workshop it might be once every two weeks these days. We are a small operation building cars as well as selling parts. Car builds take priority over parts.

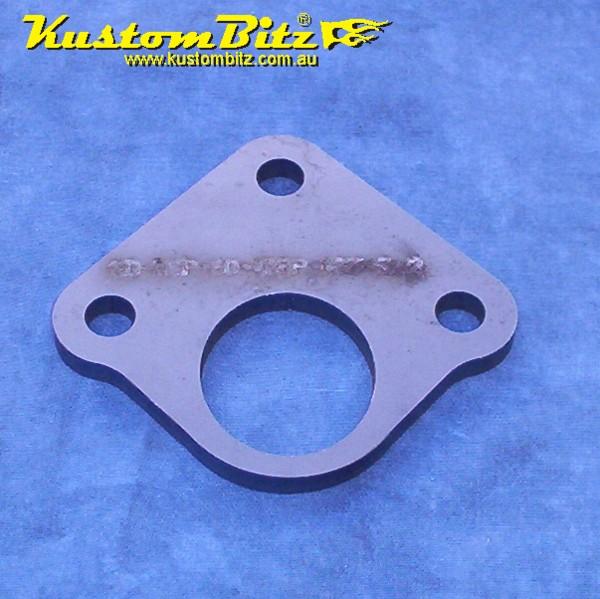

Hot Rod Chassis Crossmember Front Plate - 43 OD Tube, Triangle, Drop, 8mm thick

Overall Rating :

Bolt to chassis rail mounting plate, and weld crossmember to it

$26.40

Qty

Email to a friend

Hot Rod Chassis Crossmember Front Plate - 43 OD Tube, Triangle, Drop, 8mm thick

Product Description

Part# KB-MSP-80-XDRP-43T-3x12 ; Kustom Bitz hot rod or custom car chassis bracket. This unit is a Front plate which is intended you can bolt this to the weld on bracket that gets welded to the chassis rail. Weld your fabricated chassis cross member to this bracket.

Laser precision cut mild steel. All holes are also laser cut for precision fit with our matching other pieces in the range.

Dimensions
Holes = 12.5mm [to allow clearance for 1/2" UNF bolts]
Height = 109mm
Width = 120mm
Thickness = 8mm
Tube Diameter = 43 OD

This part matches Back plate KB-MSP-120-XDRP-BL-3

Of course you can use them for anything else you see fit.
