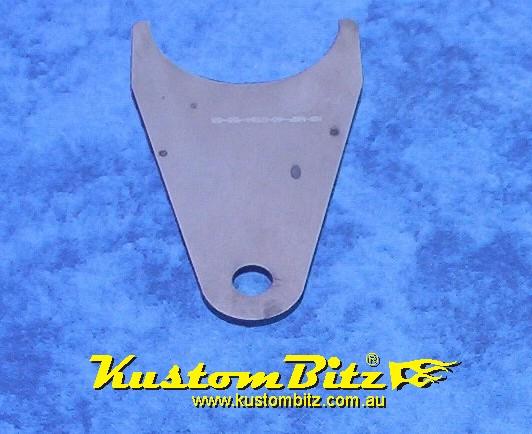

Diff Bracket suits 84mm tube ~ Mild Steel, Isosceles Triangle, 1 x 5/8 hole 155mm from axle centre

Overall Rating :
Mild steel 4mm thick plate - UNIVERSAL BRACKET. Ideal for use with rear 4 bars, 4 link, 3 links and pan hard bars.
$8.00
Qty



Product Description
General Purpose Diff Bracket


Part# KB-MSP-40-DT84-155-58 : Kustom Bitz laser cut plate steel bracket. These mild steel brackets are a universal hot rod or custom car differential mounting and locating bracket. Weld them to the diff axle tube, they come in various sizes so you are sure to find something that matches up to the diff you intend to use.  Shape and cut out is sized for strength to grip the diff tube by a full 180 degrees.

If you do not see what you need here then send us a quick set of diemensions or a rough sketch and we can make it for you.

Price is per unit ~ one only

The size and thickness of these brackets conform to the Australian Street Rod Construction Guidelines.

For added strength you can use one of our boxing plates to go between a pair of these brackets click here.

Main Dimensions of interest.
Hole size suits a bolt =  5/8 inch [16mm]
Number of Holes = 1
Hole spacing = N/A
Bolt hole centre from axle centre line = 155mm
Material = mild steel plate
Material thickness = 4.0mm
Total Height = 177mm
Total width = 100mm
Shape = Isosceles Triangle
To suit a diff axle tube diameter of 84mm
