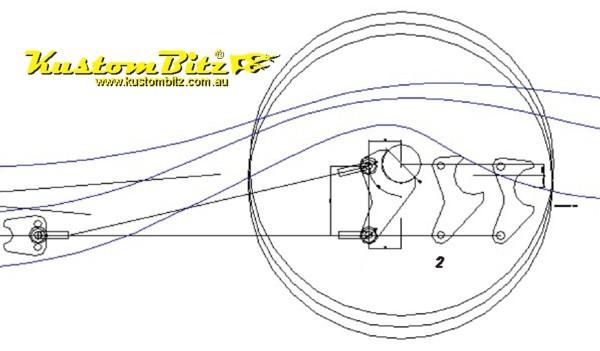

Shape 2 – Long bracket

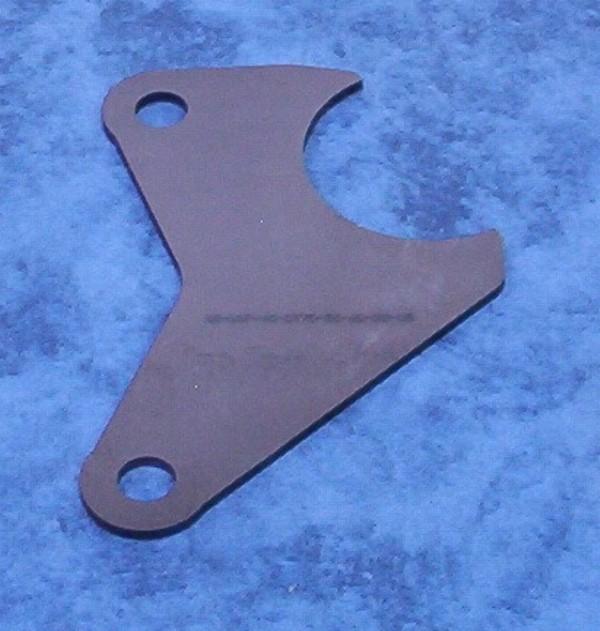

Part# KB-MSP-40-DT71-150-82-20-58 : Kustom Bitz laser cut plate steel diff bracket. These brackets are a universal fit to suit hair pin radius rods, 4 bars and ladder bar  located rear ends in Hot Rods, Custom Cars, Street Machines, Muscle cars and dragsters.

Price is per unit ~ one only

The size and thickness of these brackets conform to the Australian Street Rod Construction Guidelines.

Main Dimensions of interest.
Suits diff axle tube diameter of 71mm
Top Bolt hole is 82mm forward of the axle centre line [LONG]
Top Bolt hole is 20mm above axle centre line
Bolt Holes are 150mm apart
Bolt Holes size = 5/8 inch
Material = mild steel plate
Material thickness = 4.0mm
Total Height = 189mm
Total width = 121mm

NOTE: If you are installing the bars inline with the chassis rail then use a pair of “SHORT” brackets per side. However if you wish to angle the bars toward the centre of the chassis to meet street registration requirements then you will need one “SHORT” and one “LONG” bracket per side to provide enough angle for you to play with positioning of the bars.

If you do not see what you need here on our web site we can make it for you.
